Ref.M01 Military Ship

Inspection:
United Kingdom
price:
US$ 5.000.000,00


Six units available.

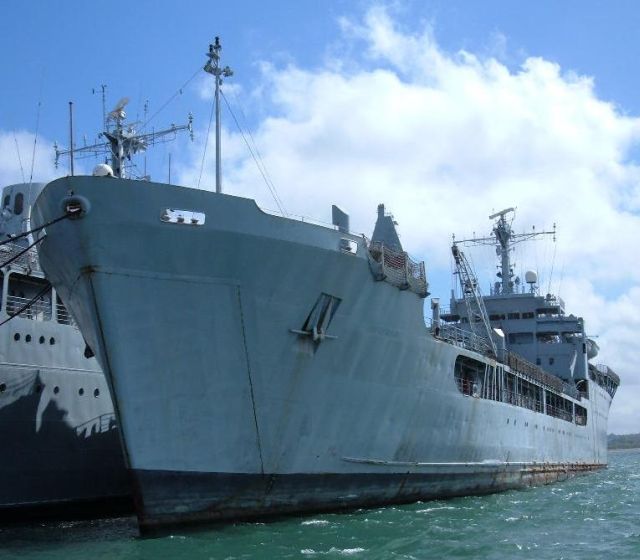

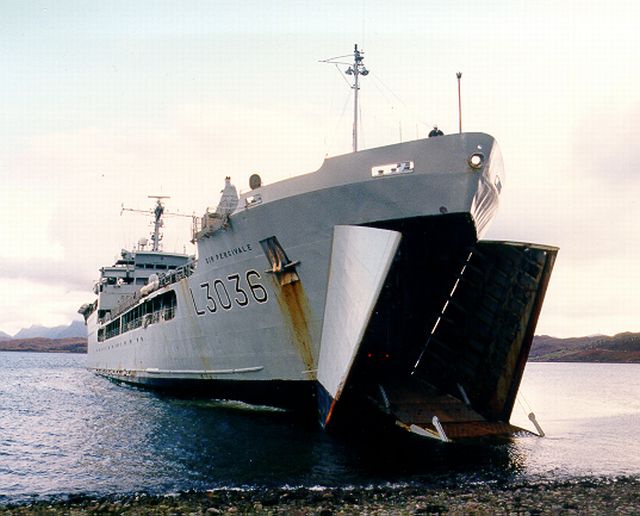

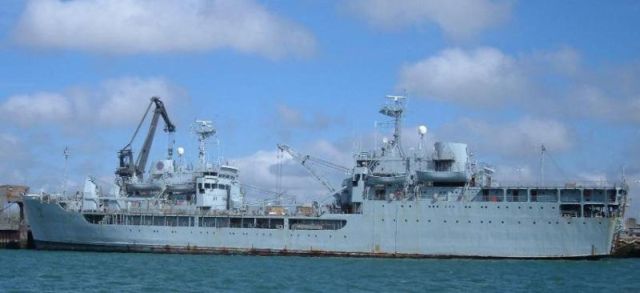

This ship "Sir Percivale" is the last of a series of five sister vessels that were built in the UK during 1967/68 – St Bedivier 67 -Sir Galahad 67- Sir Geraint 67 -Sir Tristram 67 & Sir Percivale 68, as a Landing Ship Logistic (LSL) with dimensions of 413.3' / 366.2' X 59.8' X 26.0' depth / 13.10' laden draft. LR +100A1, +LMC Class 1 RO-RO Passenger (class lapsed). U.K. registry. G /NRT 6207 / 1862.

The six original vessels in this class were ordered by the Ministry of Transport and operated by he British Indian Steam Navigation Company on behalf of the British Army until 1970 and subsequently transferred to the Royal Fleet Auxiliary. The vessels were manned by the Royal Fleet Auxiliary, (RFA) but tasked by the Army. Classified as landing ships logistics (LSL), the class are a cross between a Roll On / Roll Off vessel and a landing ship.

Their main roles and capabilities have been to carry troops vehicles and equipment, and are also capable of carrying aircraft on the helicopter pad behind the main structure. The ships were used for heavy secure transportation of stores fuel and water – embarked by both bow and stern doors – and used for beach assault landings. Fitted for bow and stern loading with drive-through facilities and deck-to-deck ramps. Facilities provided were for onboard maintenance of vehicles and for laying out pontoon equipment. Mexeflote (self-propelled floating platforms which can be strapped one either side). Vessel has facilities to carry ammunition, repair vehicles & equipment.

Vessel is flat bottomed for beaching. Hull reportedly sound at last inspection with no leaks known. Stern door closed & locked and forward bow gate presently welded shut. Accommodation is for troops + vehicles & equipment. Vessels capacity is 51 crew (18 officers) Military lift; (15 officers) 340 troops (534 hard lying); 17 or 18 Tanks; 34 mixed vehicles; 120 tons POL; 30 tons ammunition; Capacity for 20 helicopters (11 tank deck and 9-vehicle deck)

Sir Percivale was a very well constructed vessel, built to Lloyds Class, and was maintained to a high standard throughout her life, which is evident by her current condition. The vessel was reported to have operated under her own power up until November 2004. It should be noted that the vessel does contain asbestos, all of which will be sealed by commercial contractors to the account of the present owners prior to delivery. The vessel is operated by direct reversing, and therefore has no reduction gear or clutch mechanism.

To obtain general specifications please "click" on the light blue photo areas below.

PLEASE TAKE NOTICE BEFORE CONTACTING REGARDING FURTHER DETAILS OR TO ARRANGE INSPECTION ON THIS SHIP: New owners must declare which Flag the vessel will fly, and describe the nature of the intended future operation of the vessel, prior to any agreement to sell the ship can be concluded.

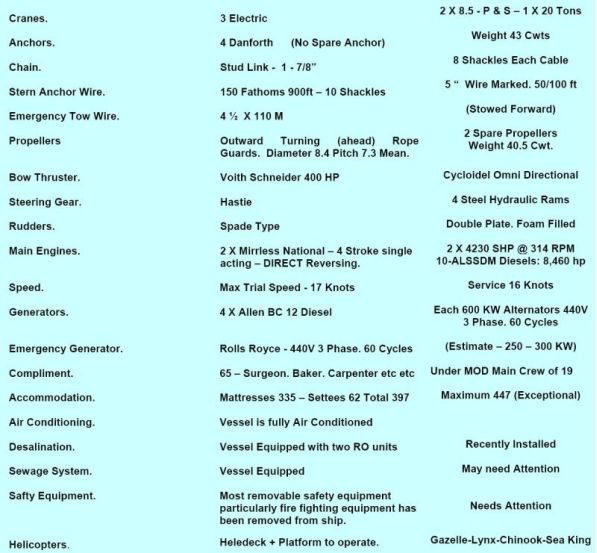

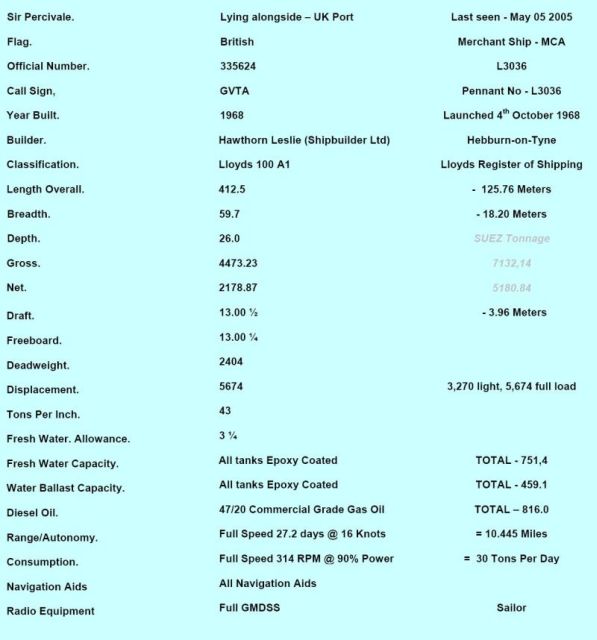

Specifications:

  • Vessel name: Sir Percivale
  • Vessel condition: Very Good
  • Vessel type: All Ocean Class Landing Crafts
  • Designer: British Lloyds 100 A1
  • Builder: Hawthorn Leslie
  • Model: Sir Bedivere Class Tank Landing Ships
  • Year constructed: 1968
  • Guests: 534 Berths: 65
  • No. of engines: 2 Engine model: 2 x Mirrless National Engine power: 314RPM @ 2 x 4230 HP
  • Fuel type: Diesel Fuel Consumption: 30 Tons Per Day Crusing Speed: 17 Knots
  • Length over all: 134.85m
  • Beam: 17.94m Hull
  • material: Steel Hull
  • type: Flat Displacement: 5674 tons
  • Dry Weight: 3270 tons
  • Fuel capacity: 751 Cubic Metres
  • Water capacity: 816 Cubic Metres
