ABS class, USA Flag
Year Built 1966
Class / Type Oceanographic Research Vessel
Length 133 ft. LOA (40.53 m)
Breadth 31 ft. (9.44 m)
Depth 14.5 ft. (4.42 m)
Draft Loaded 13.8 ft. (4.20 m)
Main engines EMD-8-567CR
Total Horsepower 820 @ 800 rpm
Gears Liaaen ACG50150
Generators (3) Detroit 8V71
Bow Thruster Elliot White Gull
Stern Thruster 160 hp
Propulsion Variable Pitch Props
Range 6500 miles @ 9.5 knots
Fuel Oil 29,250 gallons
Lube Oil 410 gallons
Potable water 5,000 gallons
A frame 3.300 pounds (1497 kg)

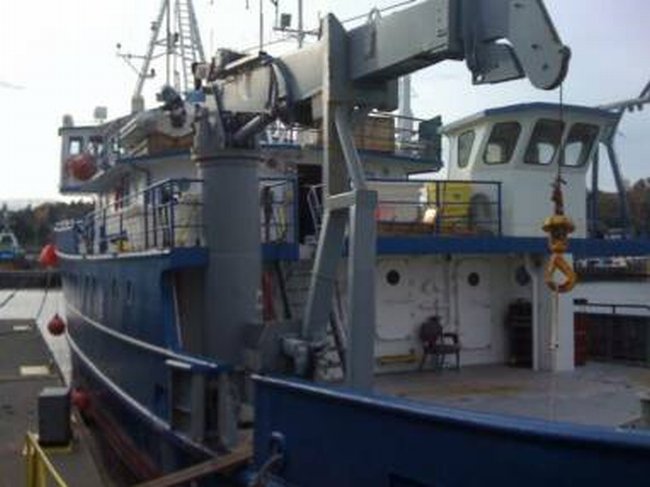

Deck crane S.W.L. 2,880 min 5,310 Max
offset to port side (2408.5 kg)
Crew 8-10, depending on mission
Scientists / Supernumeraries 19-21 including marine technician
Tonnage 289 GRT 73 NRT

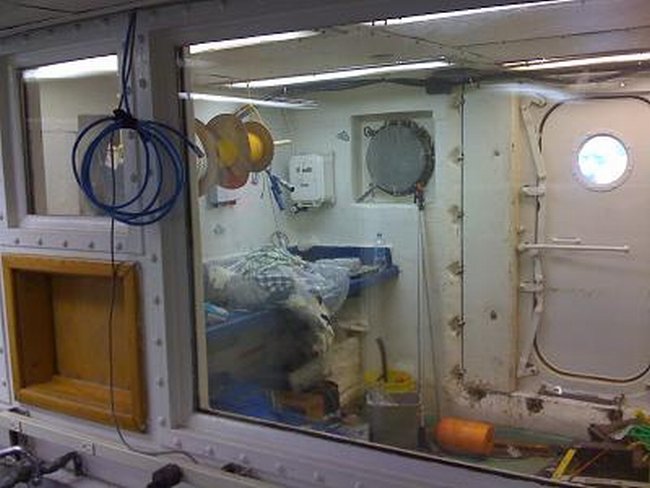

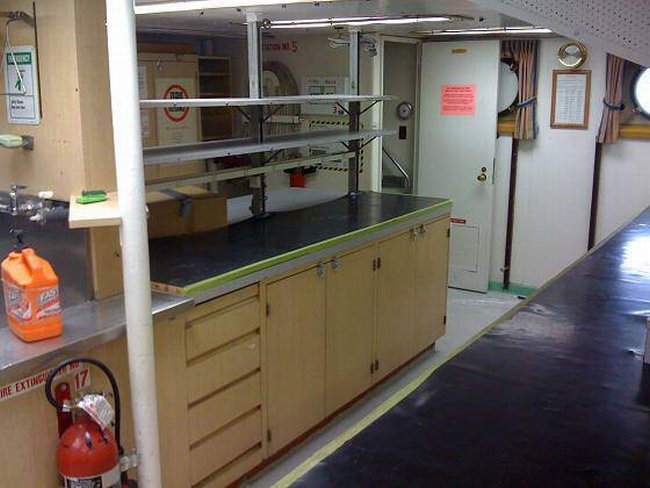

Labs Wet: 81 ft2 Dry: 457 ft2
Aft deck 1280 ft2
Cruising speed 10 knots
Max speed 11 knots
Stabilizers Zero speed stabilization
Location: Pacific NW
Vessel is in very good condition!
