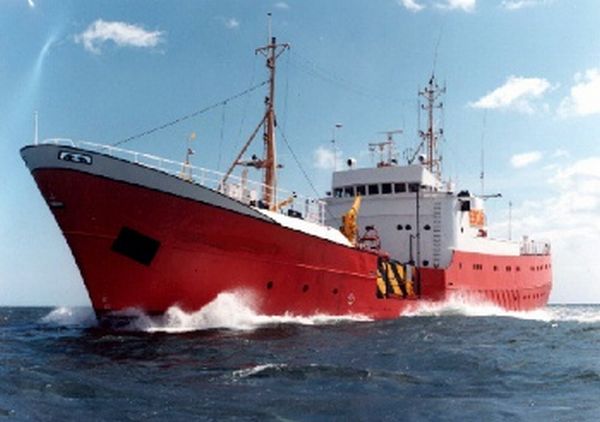

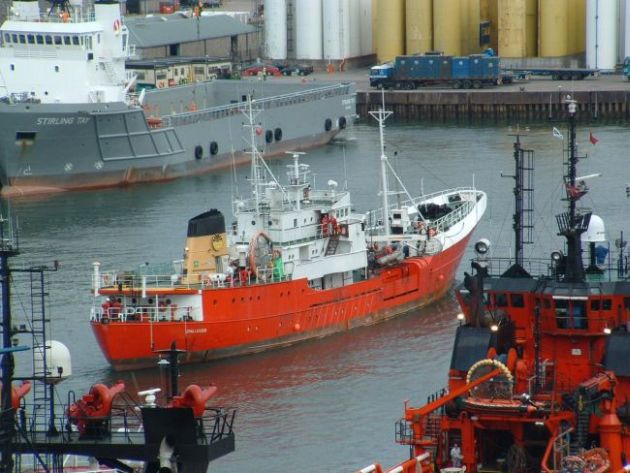

MV CHALLENGER
==============
TYPE EX SUPPLY/STANDBY VSL
BLT 1964, N.V.SCHIPSWERF, NETHERLANDS
LOA 62.60m
BEAM 10.20m
DRAFT 5.1m
GRT 999 / NRT 299
MACHINERY & PROPULSION
M/E 1 x BOLNES TTL 1200BHP
SECONDARY PROPULSION SLAVE ENGINE BOLNES 6L, 220KW
MAIN PROPULSION TYPE CPP PROPELLOR
1 SPADE RUDDER
BOWTRUSTER AQUAMASTER AZIMUTH 450BHP
SPEED 10KN
EQUIPMENT ADDING VALUE
WATER CAPACITY 123mts
FUEL CAPACITY 101 mts
DISPERSANT BOOMS 2 x WARREN SPRINGS
DISPERSANT PUMPING SYSTEM HYDRO ROLLER PUMP 1502N ELECTRIC
DISPERSANT CAPACITY 5000 TONNES
DISPERSANT TYPE AGMA DR379
NAVIGATION EQUIPMENT
PRIMARY RADAR FURUNO 7062/ARPA FACILLITY TYPE RDP -122
SECONDARY RADAR FURUNO FR15015 DA TYPE RDO59
GPS NAVIGATOR FURUNO
ECHO SOUNDER FURUNO CV201
NAVTEX LOCATA NAVTEX 2
VHF DIRECTION FINDER JMC VHF DF 550
GYRO COMPASS ANSCHUTZ GYRO COMPASS STANDARD 20
AUTOMATIC PILOT HAVANT NAVITRON NT 921G
ACCOMODATION
CREW ACCOMMODATION SINGLE CABINS 12 MEN
PRIMARY SURVIVOR LOCATION LOWER DECK MIDSHIPS PORTSIDE
SECONDARY SURVIVOR LOCATION LOWER DECK FORWARD
NUMBER OF SEATS (SURVIVORS) 150
NUMBER OF BUNKS (SURVIVORS) 37
NUMBER OF SHOWERS (SURVIVORS) 12
NUMBER OF WC's 10
TREATMENT ROOM SIZE 18.0 m2
COMMUNICATIONS EQUIPMENT
PRIMARY MF RADIO MF/HF SAILOR COMPACT, HF SSB RE2100
SECONDARY MF RADIO SAILOR TX S1301L, RX R1117
DSC WATCHKEEPER ICS DSC 2
HF RADIO SAILOR TX S1301L, RX R 1117
VHF RADIO 1 SAILOR COMPACT RT 2048
VHF RADIO 2 SAILOR COMPACT RT 2048
VHF RADIO 3 SAILOR RT144C
PORTABLE VHF RADIO'S 3 x STANDARD H238S
SATELLITE COMMUNICATIONS MINI M
SHIPS INTERCOM / TALKBACK STEENHANS PK - 20
AERONAUTICAL RADIO SET DITTEL FSG 50
E.P.I.R.B. JOTRON TRON 40S
S.A.R.T. JOTRON TRON & MCMURBO RT9-3
BRIDGE ALARMS MANOVERBOARD, GENERAL ALARM, FIRE ALARM
UHF RADIO 1 ICOM EM-99
GMDSS COMPLIANCE AREA A2
SURVIVOR RECOVERY / RESCUE EQUIPMENT
RESCUE CRAFT 1 No 1TYPE AVON SEARIDER
RESCUE CRAFT No 1 RATED CAPACITY 15 MEN
RESCUE CRAFT No1 PROPULSION TYPE 2 x YAMAHA 60HP OUTBOARDS
COMMUNICATIONS PORTABLE VHF'S &SONIC HELMET
DAVIT No1 TYPE VESTE 360
DAVIT No 1 HEAD ABOVE WATER 7.5m
DAVIT No 1 SAFE WORKING LOAD (SWL) 3TONNES
DAVIT No 1 SECONDARY LIFT HYDRAULIC
DAVIT No1 LOCATION PORTSIDE 5m FORWARD OF MIDSHIPS
RESCUE CRAFT No2 TYPE AVON SEARIDER
RESCUE CRAFT No2 RATED CAPACITY15 MEN
RESCUE CRAFT No2 PROPULSION TYPE 2 x YAMAHA 60HP OUTBOARDS AUTOLUBE
RESCUE CRAFT No2 COMMUNICATIONS PORTABLE VHF'S & SONIC HELMET
DAVIT No2 TYPE HYDRAMASKIN CRANE
DAVIT No 2 HEAD ABOVE WATER 7.5m
DAVIT No2 SAFE WORKING LOAD 2.5 tonnes
DAVIT No2 SECONDARY LIFT HYDRAULIC
DAVIT No 2 LOCATION STBD 5m FORWARD OF MIDSHIPS
RESCUE CRAFT ADDITIONAL FUEL 440 LITRES
ADDITIONAL RESCUE / RECOVERY FACILITIES
MECHANICAL RECOVERY TYPE DACON SCOOP
DECK CRANE SAFE WORKING LOAD1.5TONNES
DECK CRANE MAXIMUM WORKING RADIUS 10m
SURVIVOR RESCUE ROCKETS PAINS WESSEX SPEEDLINE
OVERSIDE RESCUE ZONES SIZE PORT 6.2m, SATRBOARD 6.7m
RIGID SCRAMBLING
NETS LOCATION AFT MAIN DECK
TEMPRARY REFUGE (RESCUE BASKET)'
TYPE COSALT
SEARCHLIGHTS 2 x NAMUAL ON BRIDGE TOP
EMERGENCY HELICOPTER
WINCHING AREA AFT MAIN DECK
VSL IS REPORTED INVERY GOOD CONDITION
- ALL DETAILS ARE GIVEN IN GOOD FAITH BUT WITHOUT GUARANTEE -
