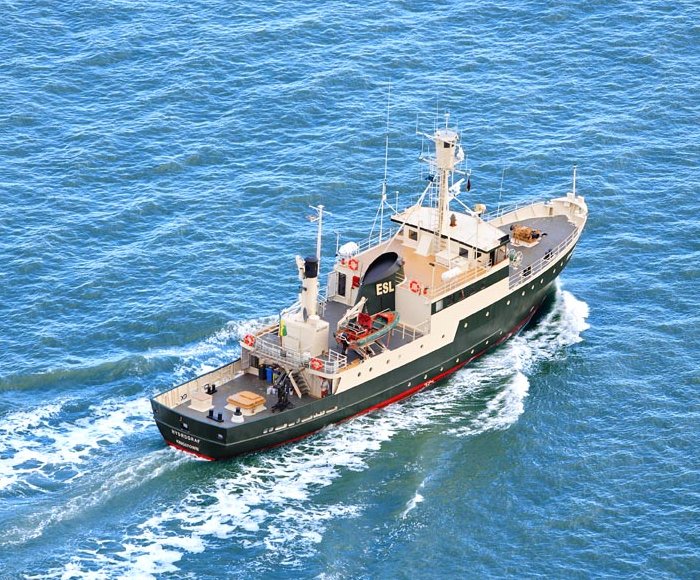

Name: M/V HYDROGRAF
Type: Exploration Yacht
Registration: St. Vincent and the Grenadines
Official number 10164
IMO number 6724440
Call sign J8B3691
Class Society: International Naval Surveys Bureau. I.N.S.B.
Class: Commercial World wide E0 Ice C
Built: 1967 Mjellem and Karlsen Shipyard AS, Norway
Gross/Net Ton 343 / 103
Length oa: 38, 97 m
Beam: 7, 83 m
Draught: 2, 94 m
Safe height: 14, 00 m
Main engine: Caterpillar - type 3508, 850 HK, New 1991
Generators: 1 x Iveco Aifc 8061-M12, 79 Hp, New 1997 / generator 58 kWa.
1 x Volvo Penta D5A - ATA, 150 HK, New 2007/ generator 65 kWa.
Bow thruster: Brunvoll / Volvo TMD-120AK, 250 HP.
Tank capacity:
Fuel 44.000 L
New engine oil 2.000 L
Used engine oil 2.000 L
Fresh water 38.000 L
Speed endurance:
Top speed 13.0 kn. 3.000 L/day. 4500 n.mile.
Medium speed 11.5 kn 2.500 L/day
Economy speed 10.0 kn. 1.600 L/day. 6600 n.mile.
Economy speed 8.0 kn. 1.000 L/day. 8400 n.mile.
Communication:
Full GMDSS Area 1, 2, 3.
MF/HF Sailor Compact HF SSB RE 2100
GMDSS Sailor Compact HF SSB RM 2150
VHF-DSC Sailor RT 2047/D-RT4822
VHF Sailor RT 144C
VHF Sailor C 4900
VHF Hand held Skanti 9110 2 stk. GMDSS
VHF HAND HELD Icom AD-90, 2 stk.
INMARSAT-C Furuno
AIS Furuno, FA-100
MINI-M Sat.phone. Thrane & Thrane
VHF-PEILER Taiyo TD-L1550
NAVTEX Furuno NX-500
Mobile phone and Telefax. GSM
Navigation:
RADAR 1 Furuno, FR 2110 ARPA 72 mile
RADAR 2 Furuno FR 1510 D ARPA 72 mile
GPS Furuno GP-70 Mark II
GPS Furuno GP-36 DGPS
LORAN C Furuno LC-90 Mark II
Dept. sounder Furuno FCV-581
Logg Furuno GP 70 Mark 2
MAGNET COMPASS Bergen Nautikk
GYRO COMPASS. SG BROWN - SGB1000
Gyro repeater Lehmkul Electronic
GPS GYRO COMPASS Furuno, SC-110
with 2 repeaters
AUTOPILOT Robertson AP-45
Chart plotter 1 Telchart 2022
Chart plotter 2 Olex with 3 monitors
Emergency transmitter:
SART Jotron, type JXJ
EPIRB Jotron, Tron 45 SX
EPIRB Jotron, Tron 30S Mk II
Fire and safety equipment:
Fireman outfit Dreger, 1 stk. 3 reserve bottles
MOB boat Wed 17, 90 HK Mercury, VHF
Life rafts 1 16-person, 1 25-person
Emergency stretcher 1 Rescue Pac Mark II, Trelleborg
Oxygen apparatus 1
Fire equipment According to class
Towing capacity 8 ton
Life west's 20
Emergency suits 16
Deck equipment:
Aft deck:
Capstan 1
Hydraulic crane 1 TMP 700 K, 6TM
Bollard pull 8 ton
Boat deck:
Davit SB MOB Polar davit nr. 108 with dead ship arrangement.
Rib man over board boat 90 HP
Davit BB Nordavit, type Nor-Bas.
Fore deck:
Anchor windless 1 with 2 anchors and capstan drum
Upgrades:
Top sides High pressure water blasted 1998
Under water High pressure water blasted 2005
Accommodation Most of the cabins, corridors, bath rooms and
salons rebuilt and upgraded in the last years.
Accommodation:
Total 16beds (possible 20) in 12 one man 2 two man cabins
whereof 3 single cabins with bathrooms
Galley, mess room and day room. Big office behind bridge
Second office / hospital
Freezer and cold rooms
Sauna and special room for smokers.
Location: North Continent
Comment: In excellent condition, ready to go anywhere!
