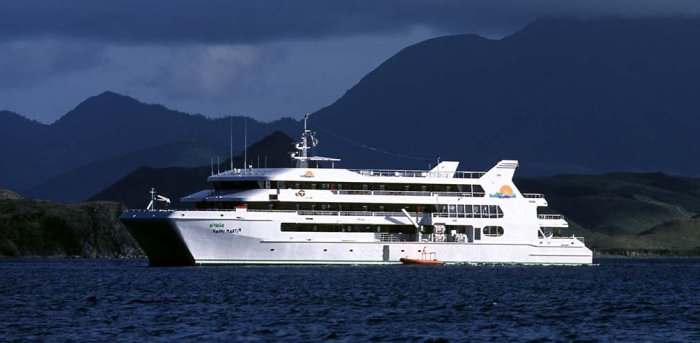

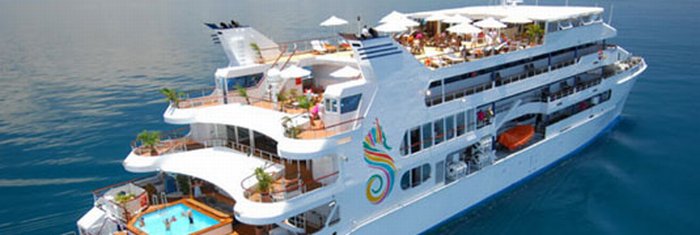

Ref.054 Luxury Cruise Catamaran

Inspection:
Inspection at South Pacific
price:
 Euro 12.000.000,00


Built by  AUSTAL (Oceanfast) 1999, refit 2005/2006

PRINCIPAL DIMENSIONS







Length Overall

60.0 metres

Length Waterline

54.8 metres

Beam (Moulded)

15.0 metres

Depth (Moulded)

4.80 metres

Hull Draft (Approx.)

2.10 metres





PAYLOAD AND CAPACITIES







Passengers

80

Cabins

34



26x2 berth, 4x2+2 berth,



4x2+1 berth

Fuel

60,000 litres

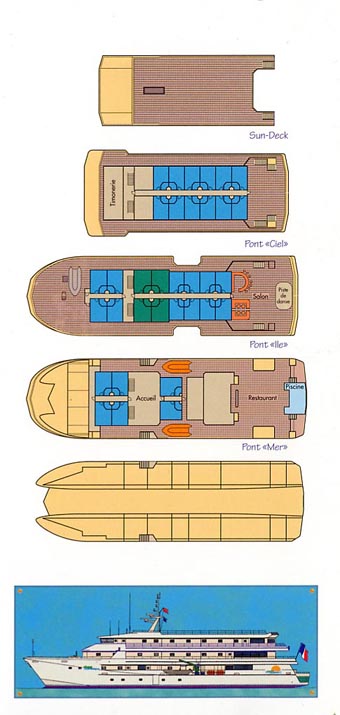

PUBLIC SPACES







Main Deck

Restaurant Seating for 80

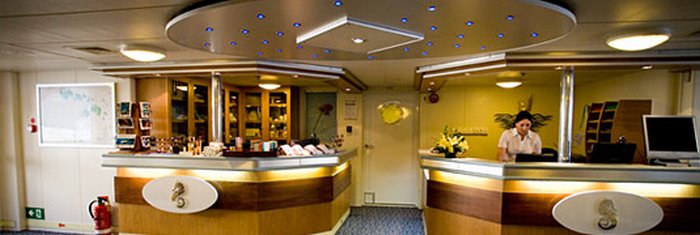

Reception and Souvenir Shop

Upper Deck

Bar, Lounge Seating for 80



Dance Floor

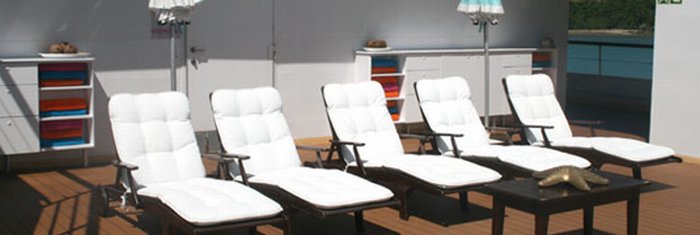

Sun Deck

Mini Bar, 16 Sun Lounges

Pool Deck

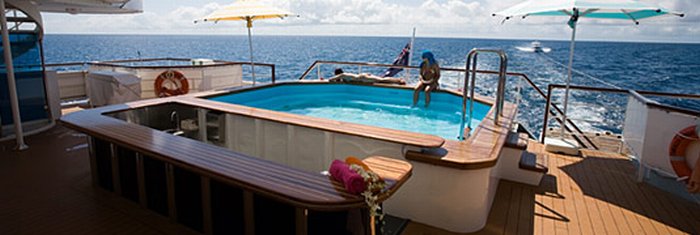

Salt Water Swimming Pool, Mini Bar





CREW







Ships Operation

8

Hotel & Catering

15





PROPULSION







Main Engine

2 x MTU 12V 2000 M70



2 x 790 kW @ 2100 rpm

Gearboxes

2 x ZF BW 256

Propellers

2 x Fixed Pitch

Bowthruster

1 x 55 kW (hydraulic) in each hull





PERFORMANCE







Speed max.

14.5 knots





Range at Service Speed



Operational

1500nm (approx) with 10% reserve

Relocation

2500nm (approx) with 20% reserve





SURVEY







Bureau Veritas







The works carried out between second half of 2005 and 2006 are:



-         Special Survey for 5 years,

-         full repainting of the vessel,

-         three new “zodiacs”; 2 for 6 people and 1 for 12 people,

-         an automatic self searching satellite antenna,

-         new washing machines and dryers,

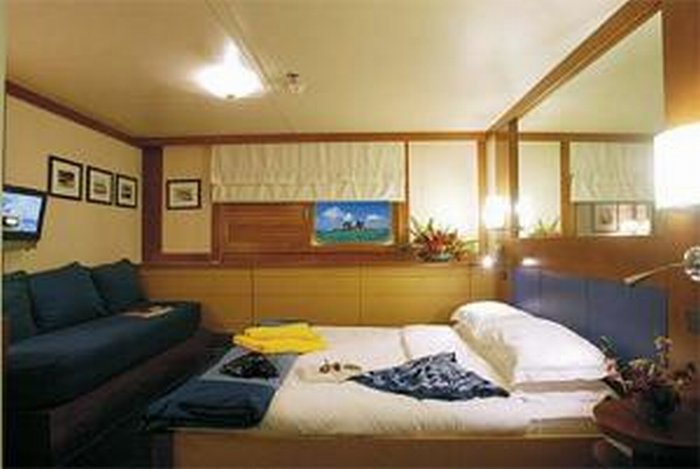

-         refitting of all passengers cabins with new wall panels covered with artificial leather,  new carpet, new
furniture including mini bar, flat screen tv, telephone, double size beds in 22 cabins, two single beds in 12 cabins, all  beds have storage space for luggage, extra pillow, etc.;  new lights and new mirrors also in the toilet and shower room where new decorations like a ten centimetres strip of small glass mosaic and a marble cover on top of the washing basin have been fitted,

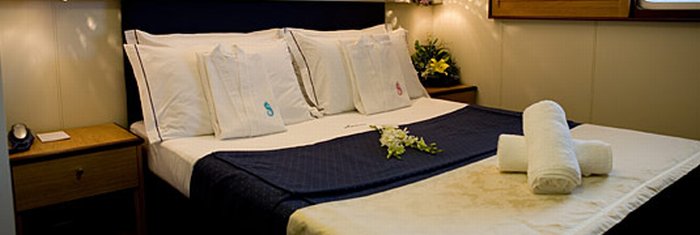

-         all beds have new bed heads, new luxury bed sheets, new mattresses, pillows and bedcovers; shower
room has new luxury towels,

-         corridors and stairs : paintings and Plexiglas under handrail have been changed,

-         the carpet all over the vessel has been renewed,

-         bar : the DJ cabin has been dismantled and a wooden base for musical instruments and musicians has
been fitted together with a built-in furniture to store all music accessories; the bar front  has been renewed same for all ceilings and lights,

-         restaurant : all walls have been covered with special panels, new ceiling, new lights, new tables and
Giorgetti chairs,

-         the restaurant has been supplied with all new provisions (stainless steel and silver cutlery, ceramics and
fine glasses)

-         kitchen : repaired all fridges, cold stores, all electrical apparatus. Renewed : two boilers for pasta, ice maker, one electric haven, some electric tools; new lights added,

-         all the hand rails throughout the vessel have been covered with hard threatened wood,

-         the restaurant and the bar have been closed on the aft side with special frames containing two doors and curtains in order to obtain a tight closure of the complete rooms. This structure can be dismantled in
summer time.

-         part of the Sun deck has been covered including the bar area with aluminium frames and windows and a  curtain-ceiling and with the possibility to fully close the area. In this space has been installed a  hairdresser, gym and a beauty centre. New tables and chairs for the bar area and new wooden sun beds.

-         4 large fins for a system of active stabilization
