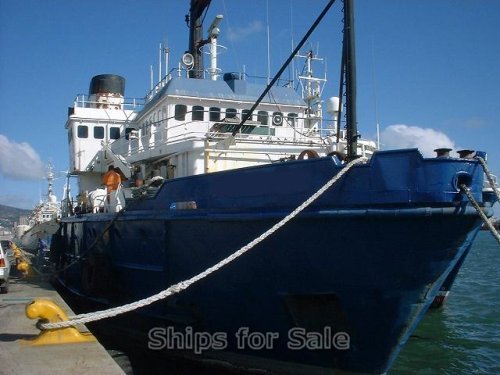

MV 'TBN'
TYPE AHTS
FLAG BAHAMAS
BLT 1975 at Bolsones Verft, Norway
CLASS INSB, NEXT SS 08/10, NEXT DD 02/06
DWT 1000 / GRT 774 / NRT 292
MAX DECK LOAD 870T
CLEAR DECK SPACE 33.8M x 9.75M TTL 330M2
LOA 59.00M / BEAM 12.4M / DEPTH 5.6M / DRAFT 4.3M
M/E: 2 x NOHAB DIESEL F216V giving 7040 BHP (5250 KW) Total
2 x VARIABLE PITCH IN KORT NOZZLES
GENS: 2 x DETROIT DIESEL
SPEED 13KN
BOWTHRUSTER FITTED 600BHP
BP 88TONS CONTINUOUS
2 RUDDERS
FUEL OIL CAPACITY 499CBM
DRILL WATER CAPACITY 582CBM
POTABLE WATER CAPACITY 150MT
DRY BULK CAPACITY 170CBM
LIQUID MUD 260CBM
CARGO PUMPS & DISCHARGE RATES:
FUEL OIL: 80MT PER HOUR / DRIL WATER: 150MT PER HOUR
POTABLE WATER: 80MT PER HOUR / LIQUID WATER: 40MT PER HOUR
(EXACT RATES ARE DEPENDING ON DISCHARGE HEIGHT TO THE PLATFORM AND PIPING LAY OUT ON THE PLATORM)
ANCHOR HANDLING / TOW WINCH BRATTVAAG SL 150 DOUBLE DRUM HYDRAULIC MOTOR
STERN ROLLER 250MT SWL
TUGGER WINCH 5TONS IN PULL
CAPSTANES 2 BRATTVAAG CA3 - 5 TONS CAP.
NAVIGATION EQUIPMENT:
2 RADARS, MAGNETIC COMPASS, 4 VHF, WATCHRECEIVER (DISTRESS),
RADIOTELEPHON MF/HF TRANSMITTER, GMDSS, EPIRB, GYRO COMPASS, ECHO SOUNDER.
CREW ACCOMMODATION: 8 CABINS + 12 BUNKS
PAX ACCOMODATION: 1 SINGLE CABIN + 8 EXTRA BUNKS
MESSROOM: CLIMATE CONTROL CENTRAL A/C AND HEAT COOLER, FREEZER.
GA PLAN & PHOTOS AVAILABLE ON REQUEST.
- ALL DETAILS GIVEN IN GOOD FAITH BUT WITHOUT GUARANTEE - |
|
