Roro ferry Canadian'
Vessel Type RO-RO passenger vehicle ferry,For Sale
Date (Re-built in 1990)
Cabins 10 could be increased to 20 if needed
Builders Canadian Vickers Shipyards
Ltd.
GEO. T. Davie Division
Flag Canada
Classification Beureau Veritas 13/3 E+
Roll on Roll Off
Passenger Ferry
Ice Class 1A
LAST DRY DOCKING -- JANUARY 2000
Length Overall 68.6m (225')
Length Between Perpendiculars 62.5m (205')
Breadth Extreme 13.41m (46',2.5")
Depth Moulded 4.95m (16'3")
Frame Spacing 0.61m (2')
Gross Tonnage 2558 Tonnes
Service Speed 13 Knots
Passenger Capactiy 400 Persons
Vehicle Capacity 55 Car Units
lotts of cargo space
Draft 4m (13.2')
--------------------------------
MACHINERY
Propulsion Machinery 1 Turbocharged diesel 9 cylinder
British Polar MN19S developing 2475 BHP at 335 RPM turning a fixed pitch
propellor
Auxiliary Generators 2 x 125 KW generators driven by a D342 caterpillar
1 x 125 KW generator driven by a 3306 caterpillar (installed new in
1999)
1 x 125 KW emergency generator driven by a D342 caterpillar
Bowthruster 1 Tunnel bowthruster driven Cummins KT 1150-H, 365HP
(installed
in 1984)
Stern Thruster 1 Omnithruster capable of thrusting ahead, astern, and
laterally (port and starboard) driven by a Cummins KTA 19M 450HP
(installed
1989)
------------------------
VEHICLE DECK PARTICULARS 3
Head Clearance
High End Center - 15'1"
Side - 14'8"
Low End Throughout - 11'3"
Length 200'
---------------------

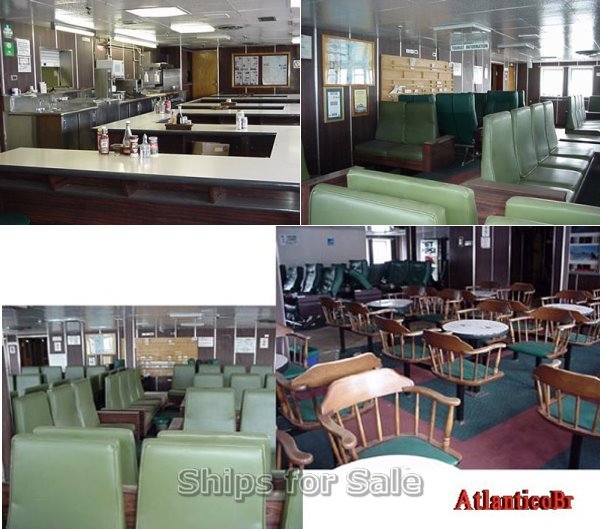

PASSENGER DECK PARTICULARS 4
Forward Lounge Seats -120
Mens and ladies washroom
Wheelchair accessible washroom
Chair lift installed in forward staircase
After Lounge Seats - 86
Mens and Ladies washrooms
Elevator - 627kg lift
Midships Restaurant with seating for 29 persons
------------------------
VEHICLE DECK PARTICULARS 5
Head Clearance
High End Center - 15'1"
Side - 14'8"
Low End Throughout - 11'3"
Length 200'
TANK CAPACITIES
Fuel Oil 61.5 Long tons
Fresh Water 25 Long tons
Water Ballast 221.62 Long tons
Lube Oil 3.38 Long ton | |
