Vessel Type RO-RO passenger vehicle ferry,
Date Built 1966 (Re-built in 1990)
Builders Canadian Vickers Shipyards Ltd.
Flag Canadian
Classification Beureau Veritas 13/3 E+
Roll on Roll Off
Passenger Ferry Coastal Waters
Ice Class 1A
Length Overall 68.6m (225')
Length Between Perpendiculars 62.5m (205')
Breadth Extreme 13.41m (46',2.5")
Depth Moulded 4.95m (16'3")
Frame Spacing 0.61m (2')
Gross Tonnage 2558 Tonnes
Service Speed 13 Knots
Passenger Capactiy 300 Persons
Vehicle Capacity 55 Car Units
Draft 4m (13.2')
LAST DRY DOCKING -- JANUARY 2000

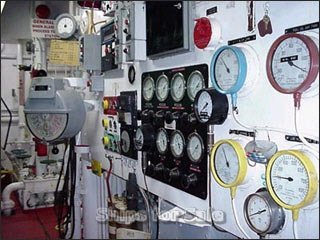

Propulsion Machinery 1 Turbocharged diesel 9 cylinder
British Polar MN19S developing 2475 BHP at 335 RPM turning a fixed pitch propellor
Auxiliary Generators 2 x 125 KW generators driven by a D342 caterpillar
1 x 125 KW generator driven by a 3306 caterpillar (installed new in 1999)
1 x 125 KW emergency generator driven by a D342 caterpillar
Bowthruster 1 Tunnel bowthruster driven Cummins KT 1150-H, 365HP (installed in 1984)
Stern Thruster 1 Omnithruster capable of thrusting ahead, astern, and
laterally (port and starboard) driven by a Cummins KTA 19M 450HP (installed 1989)

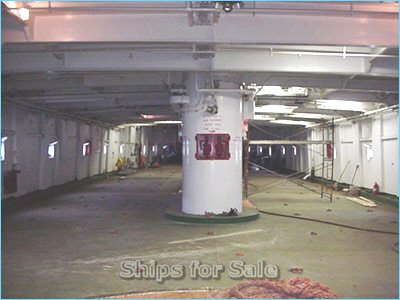

Head Clearance
High End Center - 15'1"
Side - 14'8"
Low End Throughout - 11'3"
Length 200'

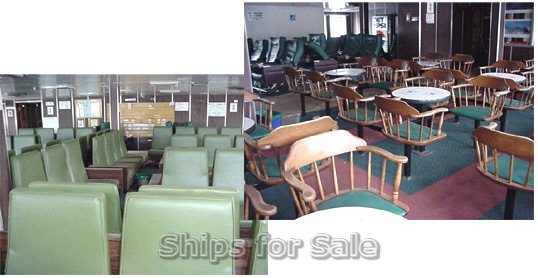

Forward Lounge Seats -120
Mens and ladies washroom
Wheelchair accessible washroom
Chair lift installed in forward staircase
After Lounge Seats - 86
Mens and Ladies washrooms
Elevator - 627kg lift
Midships Restaurant with seating for 29 persons

Fuel Oil 61.5 Long tons
Fresh Water 25 Long tons
Water Ballast 221.62 Long tons
Lube Oil 3.38 Long tons
